Plenty of shoppers treat the CFM number on a hood’s box as what the kitchen will actually receive. That rating is measured with no ductwork attached, according to Jaspector’s installation guide, so every foot of pipe and every elbow takes a share of it. Range hood ducting therefore decides whether a 600 CFM hood behaves like 600 or like something far weaker; the same guide estimates that 600 CFM pushed through 4-inch duct delivers closer to 200 CFM outside. For a 2027 kitchen project the repair is usually cheap: smooth metal pipe, the diameter the manual names, few turns, sealed seams and an exit cap that opens freely.

This guide walks through the method in order, then matches four real parts to the steps. Everything comes from building-science guides, manufacturer help pages, retailer listings and forum threads, not from our own installs, and where sources disagree we say so.

The short version before the details

A kitchen hood duct that keeps its airflow has five traits:

  • Smooth, rigid metal from the hood’s collar to the exterior cap
  • The diameter in the hood’s manual, never smaller
  • The fewest elbows the route allows
  • Airtight seams, sealed with the right tape or mastic
  • An outdoor exit with a damper that opens freely

The Building America Solution Center’s kitchen exhaust guide, from Pacific Northwest National Laboratory, lists the same set: rigid metal with a smooth interior, the manufacturer’s minimum diameter, the most direct route with as few bends as possible, airtight joints, and termination outdoors with a backdraft damper. The rest of this article builds on that baseline and adds the details where other sources push back.

Six steps to kitchen hood ducting that keeps its airflow

Match the hood duct to the collar, not to the pipe already in the wall

Start with the outlet on the hood itself. Broan’s help page says the minimum for most hoods is 3¼ by 10 inches, which equals 6-inch round, and that powerful models may need up to 10-inch round. It also says never to use 4-inch dryer duct or any plastic duct, and never to reduce existing ductwork below what the hood requires. The Broan guidance on range hood duct sends readers to the model’s own specifications for the exact figure.

Sources are not unanimous on small hoods. Lambro, a duct-fitting maker, lists a 4-inch minimum for hoods up to 400 CFM (with 6 inches recommended) and a 6-inch minimum from 401 to 600 CFM (8 inches recommended). A 4-inch pipe works against Broan’s and the Building America guide’s wording, so treat Lambro’s figure as a floor for low-airflow hoods only and let the manual settle it.

Rectangular duct is fine if the numbers match. Jaspector’s equivalence table lists 3¼ by 10 inches as roughly 6-inch round, 3¼ by 14 as about 7-inch, and 6 by 10 as about 8-inch. The same guide warns about a common remodel move: when an old 4- or 5-inch duct meets a new hood that calls for 7 or 8 inches, a simple swap tends to produce noise without real capture.

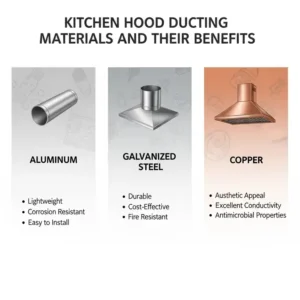

Choose smooth metal for the whole kitchen ducting system

The Building America guide specifies rigid metal such as galvanized steel, stainless steel or copper, with a smooth interior, and says not to use flexible or cloth-backed duct. Jaspector’s summary of the 2024 International Residential Code goes further, reading it as banning flexible plastic or foil duct anywhere in the run, including the hood connection. That page is a secondary summary, so confirm the wording with your local building department.

Broan makes the airflow argument for staying smooth even with metal: ridges in flexible metal duct create turbulence and diminish airflow.

Real-world opinion is softer on semi-rigid aluminum than on flex. In a Green Building Advisor thread about smooth-wall flex duct, an expert member said the rough interior of flex “is more prone to accumulating oil and dirt” and is harder to clean, and advised using rigid duct for most of the run with any flex section kept as short as possible. A second commenter reported running semi-rigid aluminum on range hoods without trouble, calling it far less restrictive than most flex duct, and a third warned that only some semi-rigid ducts are fire rated for hood use, not the cheap foil kind. That is three voices, none of them discussing code, so read it as installer opinion rather than approval. One installation guide, Inspect and Test, adds that some hood makers permit a short semi-rigid section at the final connection, which is why the manual comes first.

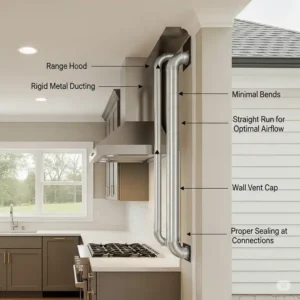

Plan duct work for kitchen hood installs around the shortest route

Every turn and every foot costs airflow, and the guides disagree on how much. Proline Range Hoods recommends 18 to 24 inches of straight duct before the first elbow and between elbows, with no more than two 90-degree elbows. It also suggests keeping a straight run under 30 feet and subtracting 5 feet for each elbow. Victory Range Hoods’ help center uses the same 5 feet per elbow, and one DIY guide, EngineerFix, suggests two 45-degree elbows in place of a single 90 when a turn is unavoidable.

Jaspector prices fittings higher: 8 feet of equivalent length per 90-degree elbow on 6- to 8-inch duct, and 15 feet for a wall cap. Proline’s own troubleshooting article uses a harsher figure of 10 to 15 feet per elbow, so even one brand does not agree with itself. Here is the same sample route run through each rulebook: a hood outlet at the back of a cabinet, 8 feet of straight 6-inch duct, two 90-degree elbows and a wall cap, a layout Jaspector uses in its own example.

Rulebook Elbow cost Wall cap cost Result for the sample route
Jaspector installation guide 8 ft each 15 ft 8 + 16 + 15 = 39 ft equivalent length
Proline Range Hoods 5 ft each, off a 30 ft budget not itemized 30 − 10 = 20 ft allowed; 8 ft fits
Victory Range Hoods 5 ft each, off a 50 ft budget 15 ft implied by its example 50 − 10 − 15 = 25 ft allowed; 8 ft fits

All three accept this short route. They split on how much a cap and each turn cost, and that gap grows with every added foot, which is why a long attic run is where the rulebooks stop agreeing. Jaspector says many 400 to 600 CFM hoods list a maximum equivalent length somewhere between 50 and 100 feet, so the number that matters is the one printed in your hood’s manual.

Join and seal every seam

The Building America guide wants the duct airtight: seams and joints sealed with mastic or metal tape, the duct attached to the fan box with mechanical fasteners, and wall, ceiling or roof penetrations sealed and flashed. It rules out cloth-backed duct tape. Jaspector’s code summary adds that standard cloth tape is not permitted and that sheet-metal screws should not project into the duct, because they catch grease; pop rivets, or screws driven only into the lap of a joint, are the alternative it names.

Two details differ by source. The tape listing is one: Jaspector’s 2024 summary names UL 181B foil tape or mastic, while a California Mechanical Code summary names UL 181A tape or mastic, so a tape marked with both avoids guesswork. Fasteners are the other. A forum poster on the Building Code Forum quotes a hood manual telling installers to fasten connections with sheet-metal screws and tape the joints, which clashes with the no-protruding-screws advice. When the manual and a general guide disagree, follow the manual and ask the inspector.

This Old House points to a practical risk with screws: check that duct screws are not blocking the damper flaps at the hood’s outlet.

Finish at an exterior cap that opens freely

The Building America guide says to vent directly outdoors, never into an attic, crawlspace or space between floors, to keep the outlet at least 10 feet from any air inlet, and to include a backdraft damper that closes when the fan is off. This Old House describes a properly installed hood as having two metal dampers, one where the hood meets the duct and one at the wall or roof cap, and says a wall cap should have a spring holding its damper shut when the fan is off. A hood mounted directly through an outside wall is described as the ideal case because it needs the shortest duct. The This Old House explanation of leaking range hood vents also notes that cold air can pour in through even a small gap in a stuck-open cap.

Opinion on springs is not settled. A Green Building Advisor commenter argued against spring-loaded dampers on range hood exits, since the blower has to push against them. On a HeatingHelp forum thread a homeowner reports that a Broan 643 wall cap, a different model from the one covered later in this guide, has a weak non-spring-loaded damper; the flaps clacked and let cold air in when wind blew. Respondents split between a spring-loaded hooded cap and a motorized damper, one HVAC technician cautioned that an airtight damper can gather grease and fail, and the homeowner finally had the termination moved to the garage roof, reporting much better results. That is a single owner’s story, but it shows the trade-off clearly: a cap that seals well can also be harder for the fan to open.

For a quick test after installation, Robam’s troubleshooting guide suggests holding a tissue near the exterior cap with the hood on high; strong air means the chain is working.

Settle makeup air before the wall is closed

A powerful hood pulls air out of the house, and the house has to pull it back from somewhere. The Building America guide says makeup air is required for any fan rated above 400 cfm and must start automatically with the fan, supplying air at the exhaust rate. This Old House repeats the 400 cfm line and adds that an unbalanced makeup-air setup can cause drafts even when the hood is off. Jaspector says some jurisdictions trigger the requirement closer to 300 cfm, and a HeatingHelp poster cites 450 cfm, so the threshold depends on your code edition and locality. Call the building department before buying a hood in this range.

Five ways kitchen hood ducting goes wrong, and the repair for each

Shrinking the duct to fit a joist bay. Broan says not to reduce existing duct below the hood’s requirement, and Jaspector reports that a reduction raises static pressure and noise while cutting the airflow the hood can deliver. Repair: reroute through a wider path, choose a hood with a smaller outlet, or switch to a rectangular duct of equal area.

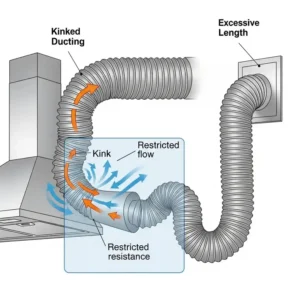

Letting flex duct sag or crush. Both the Building America guide and Broan point to smooth metal because ridges and sag add resistance and collect grease. Repair: replace the run with rigid pipe, keeping any flexible connector to the short length the hood’s manual allows.

Putting an elbow right at the collar. Proline wants 18 to 24 inches of straight duct before the first turn. Victory’s help center says most noise in range hoods comes from poor ducting installation. Repair: add a straight piece between the collar and the first elbow, even if the cabinet has to be notched.

Blaming the duct for a filter problem. Robam’s troubleshooting page puts clogged filters first, and Proline suggests cleaning them every two to four weeks. If the fan roars but little air moves, the same Robam page lists a damper stuck shut, a blocked cap or disconnected ductwork as the next suspects. Repair: wash the filters, then watch the exterior cap while someone runs the hood on high.

Leaving the damper to chance. Cold drafts, clacking and a stuck-open flap all trace to the damper rather than the pipe, which makes them the cheapest hood ducting fixes. This Old House suggests cleaning grease off the flaps with degreaser, checking that screws are not in the way, and, if the damper is weak, laying a small piece of foam on top of the flaps to add weight. Repair: replace a bent or sticking cap rather than patching it.

Four parts that cover the steps above

Every part below is for 6-inch round duct, the common size for mid-range hoods. If your hood’s outlet is 7, 8 or 10 inches, look for the same type of part in your size and keep the diameter constant through the run. Specs and prices below come from manufacturer and other retailer pages; check the current price on Amazon.com before ordering.

1. Master Flow 6-Inch x 5-Foot Round Metal Duct Pipe (CP6X60) — snap-lock sections for straight runs

Straight sections make up most of the pipe in a hood run, and this is the common HVAC snap-lock pipe that supply houses stock. Home Depot’s page lists 30-gauge galvanized steel, a crimped end for a secure fit, and no certifications or listings; Zoro’s listing shows the same gauge and notes the same lack of listings. Home Depot shows 4.4 out of 5 from 326 reviews, with 84 percent recommending it.

The complaints are about handling more than airflow. Several reviewers on that page report shipping damage, one saying only 4 of 10 pieces still snapped together securely, and one calls the metal too thin. A different reviewer used a section for a kitchen range hood and called it good duct, which is a single anecdote rather than a rating for that job. GAF’s own description covers trunk lines, branch lines and return air, not kitchen exhaust, so the fit for a hood run comes from the code requirement for smooth rigid galvanized steel rather than from the maker. A 26-gauge sibling, the 26CP6X24, is sold in 24-inch lengths if you want heavier metal.

Prices at the retailers ran around $16 to $19 for a 5-foot piece. Match the diameter to your hood’s collar before you click through, and inspect every piece when the box arrives.

Master Flow 6-Inch x 5-Foot Round Metal Duct Pipe (CP6X60)See current price, sizes and reviews on Amazon.
Check Price on Amazon →

2. Master Flow 6-Inch 26-Gauge Adjustable 90-Degree Elbow — a gentler turn when the route bends

A turn is the one thing a short route often cannot avoid, and an adjustable elbow lets you build one out of angles rather than a hard right angle. Home Depot lists this part as 6-inch round, 26-gauge galvanized steel, adjustable to any angle through 90 degrees. The same page lists it for venting boilers, furnaces and water heaters where code allows and does not mention range hoods. The page showed a review count of 168 but no review text, so there is nothing documented from buyers about sealing or leaks.

Two 45-degree bends in place of one 90 is the approach EngineerFix recommends, and an adjustable fitting makes that possible with a single part number. The trade-off is seams: an adjustable elbow has several segments, and each one is another place for grease to find a gap, so each needs tape or mastic.

Expect to pay roughly $9 to $12 depending on the retailer.

Master Flow 6-Inch 26-Gauge Adjustable 90-Degree ElbowSee current price, sizes and reviews on Amazon.
Check Price on Amazon →

3. Broan-NuTone 641 Aluminum Wall Cap for 6-Inch Round Duct — damper and bird screen at the exit

The forum story about a cap damper that clacked and leaked is the best argument for choosing this exit carefully. Retailer listings for Broan-NuTone 641 Aluminum Wall Cap for 6-Inch Round Duct, including First Supply and Hercules Industries, describe an aluminum cap for 6-inch round duct with a built-in backdraft damper and bird screen. Slyman Bros’ listing adds a spring-loaded damper with a padded damper zone meant to cut chatter in windy conditions. The listings disagree on size: First Supply and KSC give 9 by 9 inches, while The Brick lists 9 inches wide, 5.5 inches tall and 6 inches deep. One retailer notes it is not for dryer venting, so use it only on a hood or fan run.

The screen is where sources split. The Building America guide says to cover the outlet with a louver, screen or grille, while Jaspector’s code summary says the cap should have no screen so grease cannot clog it. Ask your inspector which applies, and clean the screen if you keep it. The spring is the other trade-off. This Old House wants a spring on a wall cap, yet the forum discussion above shows some installers worry that a tight damper makes the fan work harder, which is why the tissue test is worth doing once the hood is running.

Confirm the cap’s dimensions against the opening you plan to cut. Check the current price on Amazon.com.

Broan-NuTone 641 Aluminum Wall Cap for 6-Inch Round DuctSee current price, sizes and reviews on Amazon.
Check Price on Amazon →

4. Nashua 324A Premium Foil Tape (2.5 in. x 60 yd.) — listed tape for every seam

This tape answers the listing question from the sealing step: Farm & Fleet’s page says it carries both UL 181A-P and UL 181B-FX listings, approved for sealing Class 1 rigid and flexible duct joints, with a working range of -25 to 325°F. Berry Global, which makes the Nashua line, lists 4.8 mil total thickness and an acrylic adhesive. Retailer listings put the 2.5-inch by 60-yard roll at around $25 to $33.

Foil tape is the seam finish, not a replacement for mechanical fastening at the hood’s collar. The Building America guide wants the duct attached to the fan box with mechanical fasteners, then sealed. Both the Building America guide and Jaspector’s code summary exclude cloth-backed duct tape, which makes a listed foil tape the safer shelf item.

Compare the exact model number before buying, since Nashua sells several foil tapes with different UL listings.

Nashua 324A Premium Foil Tape (2.5 in. x 60 yd.)See current price, sizes and reviews on Amazon.
Check Price on Amazon →

Straight answers on duct size, flex, elbows and makeup air

❓ What size duct does a range hood need?

✅ Follow the hood's manual first. Broan says most hoods need at least a 3¼ by 10 inch or 6-inch round duct, while powerful models can call for up to 10 inches. Never shrink the duct below the collar size, because a smaller pipe limits airflow.

❓ Can I use flexible duct for a range hood?

✅ Avoid it. The Building America Solution Center calls for rigid metal with a smooth interior and warns against flexible duct, and Broan says ridges in flexible metal create turbulence. One installation guide says some hood makers permit a short semi-rigid section at the final connection.

❓ How many elbows are too many?

✅ Proline suggests two 90-degree elbows at most, with 18 to 24 inches of straight duct before the first turn. Both Proline and Victory count each elbow as about 5 feet of lost run, though other guides assign more, so your manual's table decides.

❓ Does a range hood need makeup air?

✅ Often, once it passes a threshold. The Building America Solution Center says any fan rated above 400 cfm needs makeup air that starts with the fan, though some jurisdictions set lower triggers. Ask your local building department which limit applies.

❓ Where should the duct end?

✅ Outdoors, never in an attic, crawlspace or between floors, per the Building America Solution Center. The exit needs a backdraft damper that closes when the fan stops, and the guide puts it at least 10 feet from any air inlet.

One decision rule for the hardware aisle

For range hood ducting, let the hood’s manual set the diameter, then spend your effort on a short, smooth, sealed path to the outdoors. Count the turns before you buy anything, because each elbow you remove is airflow the fan keeps. If your route fits 6-inch pipe, Master Flow 6-Inch x 5-Foot Round Metal Duct Pipe (CP6X60) covers the straight sections, Master Flow 6-Inch 26-Gauge Adjustable 90-Degree Elbow handles a turn you cannot avoid, Broan-NuTone 641 Aluminum Wall Cap for 6-Inch Round Duct finishes the exit, and Nashua 324A Premium Foil Tape (2.5 in. x 60 yd.) seals the seams. Larger outlets need the same kinds of parts in a larger size, and hoods above 400 cfm raise the makeup-air question too.

Once you have a diameter and a route, take a closer look at the listings that match your collar.

Recommended for You

Disclaimer: This post contains affiliate links. As an Amazon Associate, we earn from qualifying purchases made through these links, at no additional cost to you.


Sketch the route from hood collar to outside wall and count the turns; every one you remove is airflow you keep.
